2024

Dragster

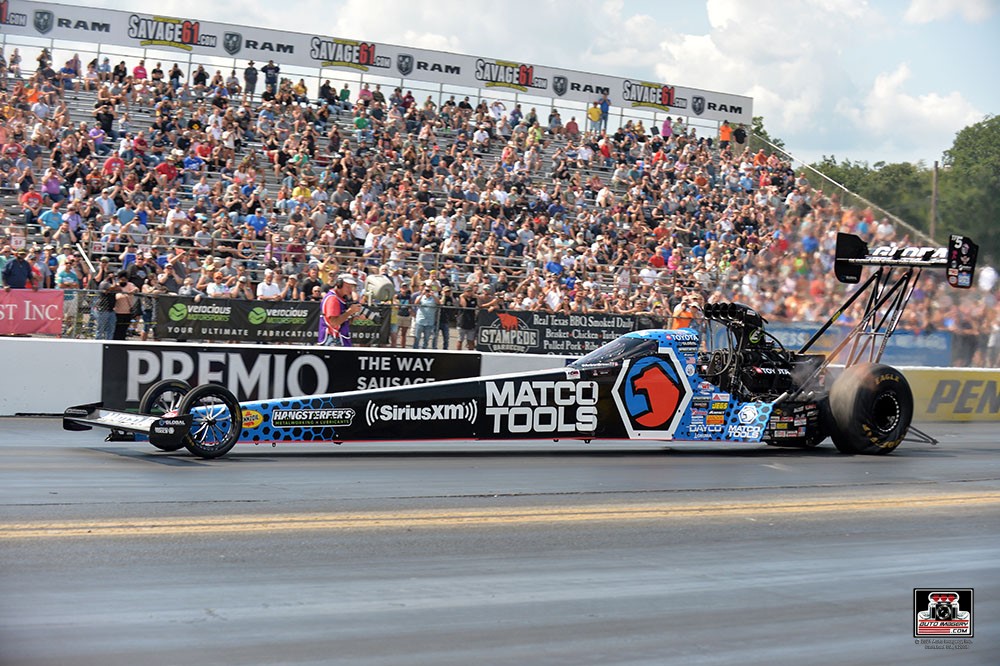

2024 Matco Tools Top Fuel Dragster

Wheelbase 300”
Length 33.5’
Width 51”
Height (at rear wing) 89”
Tires (front / rear) 23” tall / 36” tall x 18” wide
Weight (includes driver) 2,390 pounds
Weight (Antron) 155 pounds
Chassis chromoly 4130 (PBRC)
Body carbon fiber (Aerodine)
Suspension ridge mounted
Bellhousing Trick Titanium
Steering Rack & Pinion
Brakes Strange Engineering
Wheels Weld Racing
Tires Goodyear
Engine Aluminum Point One Block
Bore & Stroke 4.187 x 4.500
Compression 6.5
Horsepower 11,000 (est.)
G-Forces 3.8 G-forces at launch, up to 6 G-forces (maximum), -2 G-forces when parachutes deploy
RPM 8,500
Fuel Nitromethane (Sunoco)
18 gallons consumed per pass
Cylinder Heads DSM
Connecting Rods DSM
Pistons Diamond
Crankshaft Bryant
Ignition MSD
Spark Plugs Champion
Supercharger DMPE
Hose & Fittings Brown & Miller
Transmission High Gear Only, Direct Driver, Centrifugal Clutch
Fuel Capacity 18 gallons
Oil System Wet Sump
Oil Capacity 5 gallons
Safety Equipment Impact Racing (firesuit, parachutes, seatbelts)
